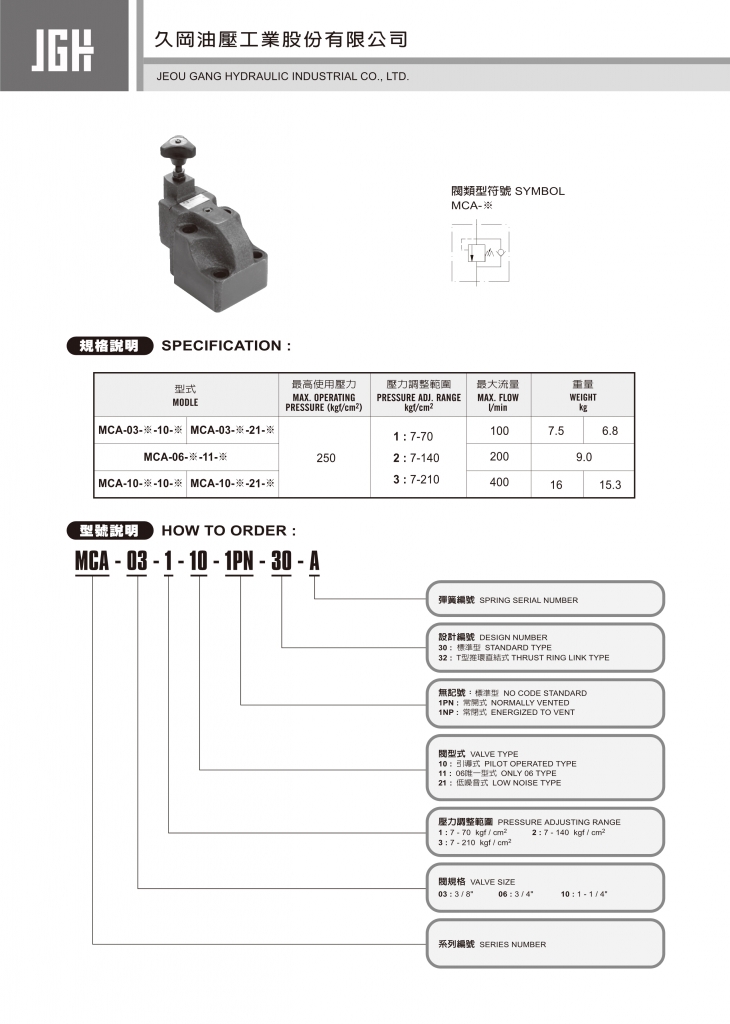

規格說明
| 型式 | 最高使用壓力 kgf/cm 2 |
壓力調整範圍 kgf/cm 2 |
最大流量 l/min |
重量 kg |
||
|---|---|---|---|---|---|---|
| MCA-03-※-10-※ | MCA-03-※-21-※ | 250 |
1 : 7-70
2 : 7-140 3 : 7-210 |
100 | 7.5 | 6.8 |
| MCA-06-※-11-※ | 200 | 9.0 | ||||
| MCA-10-※-10-※ | MCA-10-※-21-※ | 400 | 16 | 15.3 | ||
JGH背压阀常规型号参考:MCA-03-1-10-1NP , MCA-03-1-10-1PN , MCA-03-1-21-1NP , MCA-03-1-21-1PN , MCA-03-2-10-1NP , MCA-03-2-10-1PN , MCA-03-2-21-1NP , MCA-03-2-21-1PN , MCA-03-3-10-1NP , MCA-03-3-10-1PN , MCA-03-3-21-1NP , MCA-03-3-21-1PN , MCA-06-1-11-1NP , MCA-06-1-11-1PN , MCA-06-2-11-1NP , MCA-06-2-11-1PN , MCA-06-3-11-1NP , MCA-06-3-11-1PN , MCA-10-1-10-1NP , MCA-10-1-10-1PN , MCA-10-1-21-1NP , MCA-10-1-21-1PN , MCA-10-2-10-1NP , MCA-10-2-10-1PN , MCA-10-2-21-1NP , MCA-10-2-21-1PN , MCA-10-3-10-1NP , MCA-10-3-10-1PN , MCA-10-3-21-1NP , MCA-10-3-21-1PN
