提到UNIVER电磁阀,如虹精工(厦门)电子科技有限公司可以了解一下。如虹精工专业代理销售UNIVER电磁阀!诚信经营!欢迎咨询,我们将诚挚为您服务. 如虹精工为您提供最新的UNIVER电磁阀详细参数、UNIVER电磁阀实时报价、UNIVER紧凑型电磁阀库存情况等

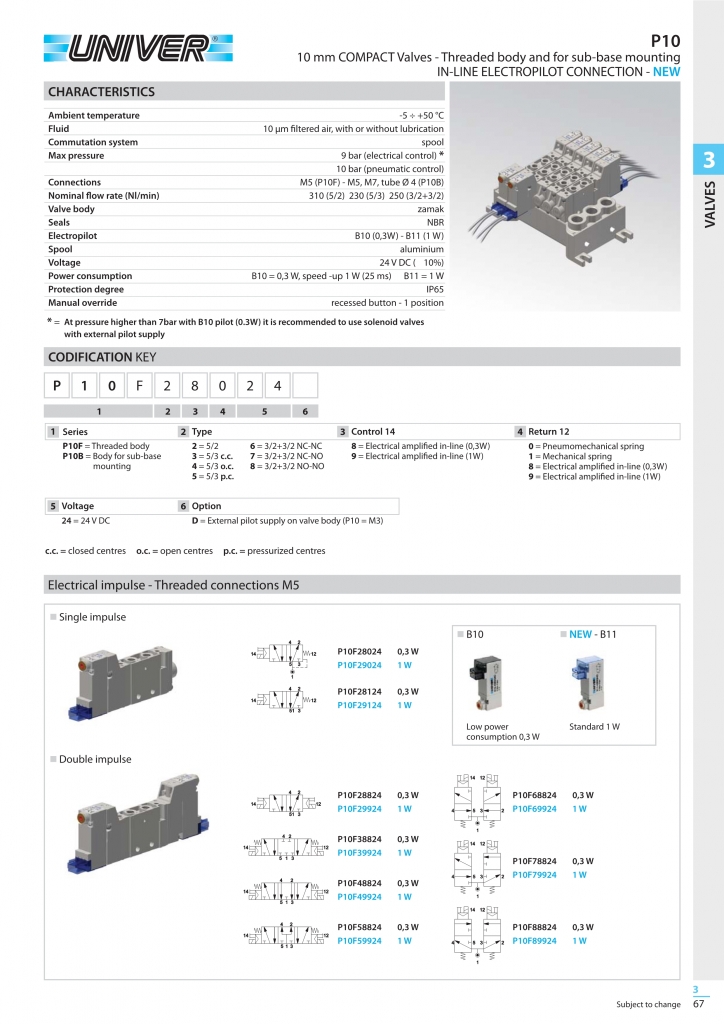

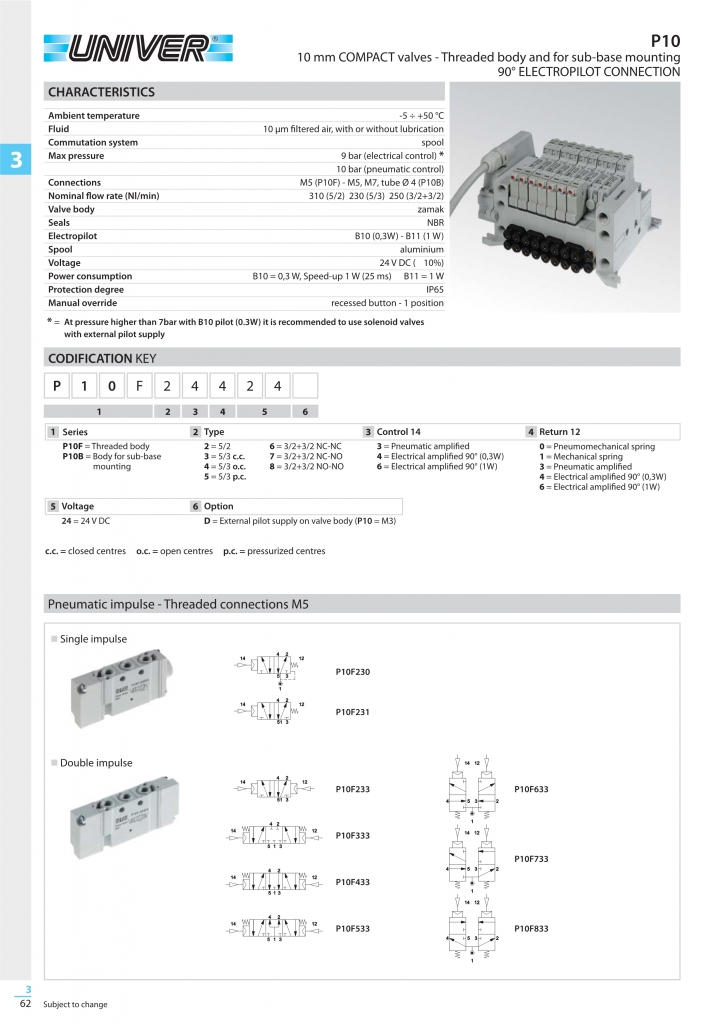

Ambient temperature -5 ÷ +50 °C
Fluid 10 μm fi ltered air, with or without lubrication
Commutation system spool
Max pressure 9 bar (electrical control) *
10 bar (pneumatic control)
Connections M5 (P10F) – M5, M7, tube Ø 4 (P10B)
Nominal fl ow rate (Nl/min) 310 (5/2) 230 (5/3) 250 (3/2+3/2)
Valve body zamak
Seals NBR
Electropilot B10 (0,3W) – B11 (1 W)
Spool aluminium
Voltage 24 V DC (± 10%)
Power consumption B10 = 0,3 W, Speed-up 1 W (25 ms) B11 = 1 W
Protection degree IP65
Manual override recessed button – 1 position

UNIVER电磁阀部分常规型号参考:P10B633 , P10F833 , P10F230 , P10B333 , P10F231 , P10B433 , P10F333 , P10B533 , P10F633 , P10F233 , P10F433 , P10B733 , P10F733 , P10B833 , P10F533 , P10SB314 , P10SB404 , P10SB414 , P10SB500 , P10SB505 , P10SB550 , P10SB560 , P10SB570 , P10SF100 , P10SF110 , P10SF200 , P10SF210 , P10SF300 , P10SF310 , P10SF400 , P10SF410 , P10SF500 , P10SF505 , P10SF515 , P10SF550 , P10SF560 , P10SF570 , P10SB100 , P10SB107 , P10SB110 , P10SB117 , P10SB200 , P10SB207 , P10SB210 , P10SB217 , P10SB304 , P10B24124 , P10B24424 , P10B34424 , P10B44424 , P10B54424 , P10B64424 , P10B74424 , P10B84424 , P10B24024 , P10F24024 , P10F24124 , P10F24424 , P10F34424 , P10F44424 , P10F54424 , P10F64424 , P10F74424 , P10F84424 , P10F24024D , P10F24124D , P10F64424D , P10SS1204M , P10SS1206M , P10SS1208M , P10SS1210M , P10SS1212M , P10SS1404M , P10SS1406M , P10SS1408M , P10SS1410M , P10SS1412M , P10B9999-13
