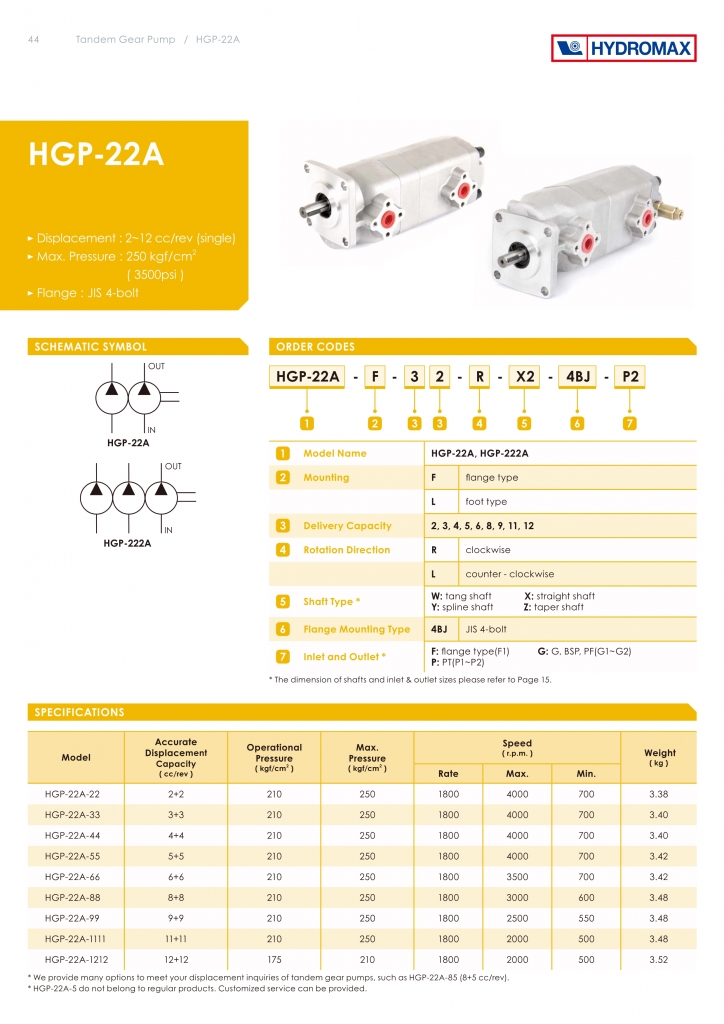

ORDER CODES Model Name HGP-22A,HGP-222A Mounting F Flange Type L Foot Type Delivery Capacity 2,3,4,5,6,8,9,11,12 Rotation Direction R Clockwise L Counter-Clockwise Shaft Type* X Straight Shaft Y Splin
PDF

ORDER CODES

Model Name HGP-22A,HGP-222A
Mounting F Flange Type
L Foot Type
Delivery Capacity 2,3,4,5,6,8,9,11,12
Rotation Direction R Clockwise
L Counter-Clockwise
Shaft Type* X Straight Shaft
Y Spline Shaft
Z Taper Shaft
W Tang shaft
Flange Mounting Type 4BJ JIS 4-bolt
Inlet and Outlet* F flange type(F1)
G G,BSP,PF(G1~G2)
P PT(P1~P2)

SPECIFICATIONS

Model Accurate Pressure (kgf/cm2) Speed (r.p.m) Weight(kg)
Displacement
Capacity
(cc/rev) normal Max Rate Max Min
HGP-22A-F22R 2+2 210 1800 4000 700 3.38
HGP-22A-F33R 3+3 210 1800 4000 700 3.40
HGP-22A-F44R 4+4 210 1800 4000 700 3.40
HGP-22A-F55R 5+5 210 1800 4000 700 3.42
HGP-22A-F66R 6+6 210 1800 3500 700 3.42
HGP-22A-F88R 8+8 210 1800 3000 600 3.48
HGP-22A-F99R 9+9 210 1800 0 550 3.48
HGP-22A-F1111R 11+11 210 1800 2000 500 3.48
HGP-22A-F1212R 12+12 175 210 1800 2000 500 3.52
