UNIVER电磁阀 SERIES AB 微型电磁阀

U2 miniature electropilots 2/2 – 3/2 The constant quality, original design, wide range, and the right quality-price ratio comply with all possible needs of the user. Careful choice of materials
PDF

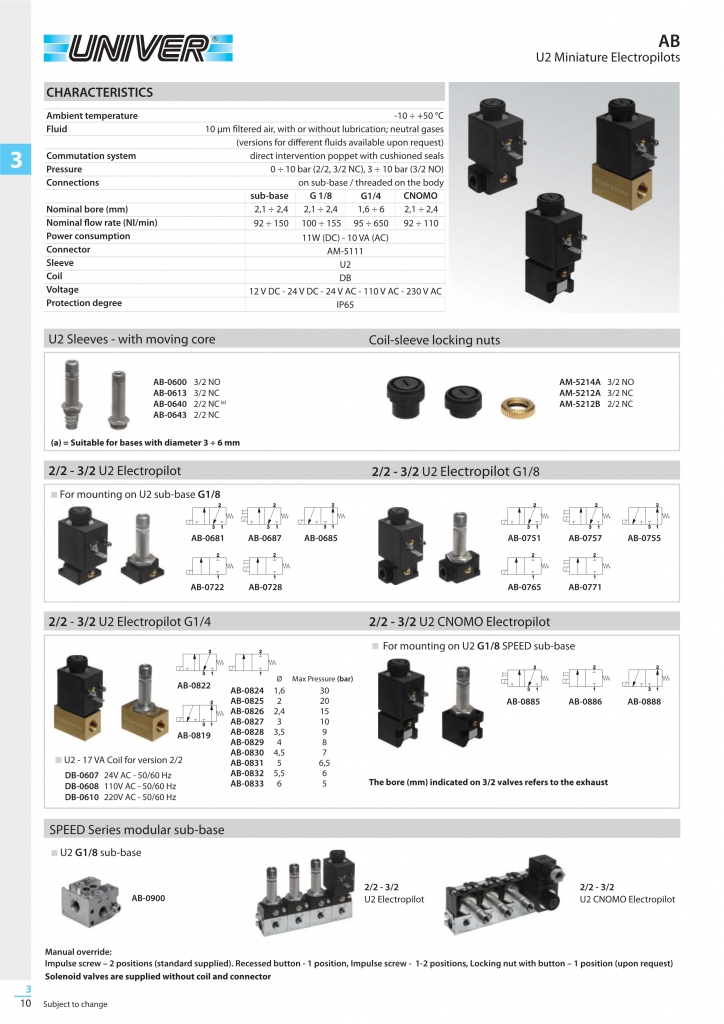

U2 miniature electropilots 2/2 – 3/2

The constant quality, original design, wide range, and the right quality-price ratio comply with all possible needs of the user. Careful choice of materials reduce residual magnetism to a minimum and eliminate seal swelling.
The availability of sub-bases (“SPEED” series) allows quick manifold connection of these solenoid valves, increasing their versatility and field of application.

Body Zamak and brass; stainless steel
w upon request
Working pressure NO 3÷10 bar NC 0÷10 bar
Ambient temperature -10 ÷ 50 °C
Fluid filtered air 50 ìm, lubricated or non
w lubricated, neutral gas
System system with cushioned seals
w on sub-bases or with threaded
Core stainless steel
Sleeve treated brass
Springs stainless steel
Seals nitrile rubber
Flow rate 29÷80 Nl/min. (U1)
w 92÷210 Nl/min. (U2)
Coils DA…/DB…/DC… series

AB-0900 , AB-0888 , AB-0886 , AB-0885 , AB-0771 , AB-0765 , AB-0755 , AB-0757 , AB-0751 , AB-0833 , AB-0832 , AB-0831 , AB-0830 , AB-0829 , AB-0828 , AB-0827 , AB-0826 , AB-0825 , AB-0824 , AB-0728 , AB-0722 , AB-0685 , AB-0687 , AB-0681 , AB-0643 , AB-0640 , AB-0613 , AB-0600
