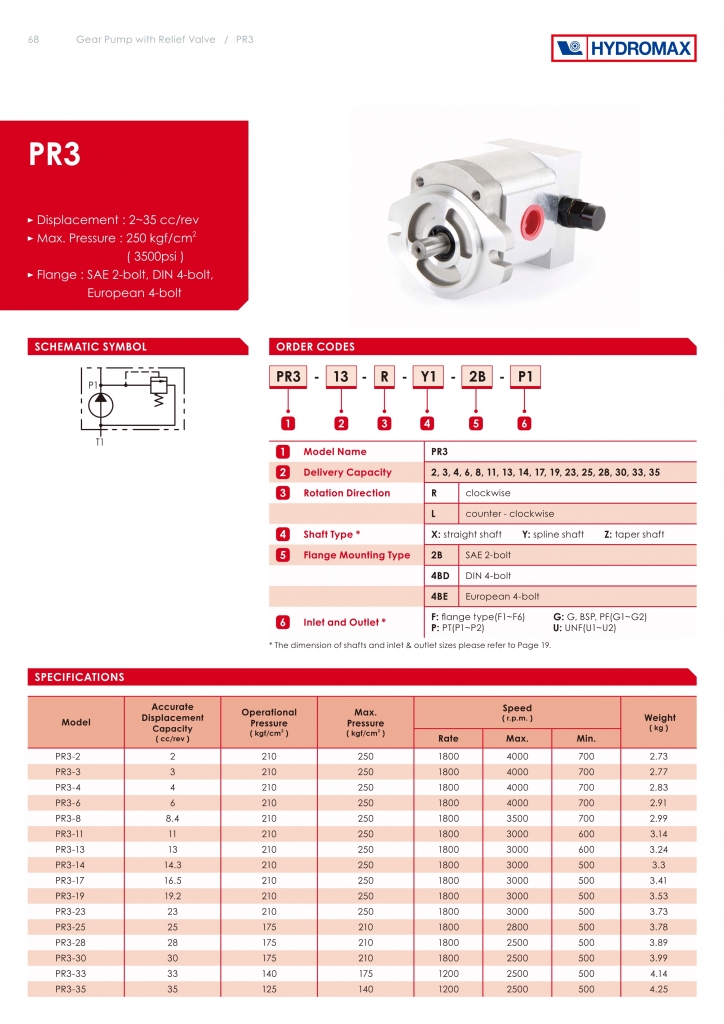

HYDROMAX新鸿液压油泵 齿轮泵 PR3系列齿轮泵附带溢流阀

ORDER CODES Model Name PR3 Delivery Capacity 2,3,4,6,8,11,13,14,17,19,23,25,28,30,33,35 Rotation Direction R Clockwise L Counter-Clockwise Shaft Type* X Straight Shaft Y Spline Shaft Z Taper Shaft Fla
PDF

ORDER CODES

Model Name PR3
Delivery Capacity 2,3,4,6,8,11,13,14,17,19,23,25,28,30,33,35
Rotation Direction R Clockwise
L Counter-Clockwise
Shaft Type* X Straight Shaft
Y Spline Shaft
Z Taper Shaft
Flange Mounting Type 2B SAE 2-bolt
4BD DIN 4-bolt
4BE European 4-bolt
Inlet and Outlet* F flange type(F1~F6)
G G,BSP,PF(G1~G2)
P PT(P1~P2)
U UNF(U1~U2)

SPECIFICATIONS


 Model Accurate Pressure (kgf/cm2) Speed (r.p.m) Weight(kg)
Displacement
Capacity
(cc/rev) normal Max Rate Max Min
PR3-2 2 210 1800 4000 700 2.73
PR3-3 3 210 1800 4000 700 2.77
PR3-4 4 210 1800 4000 700 2.83
PR3-6 6 210 1800 4000 700 2.91
PR3-8 8.4 210 1800 3500 700 2.99
PR3-11 11 210 1800 3000 600 3.14
PR3-13 13 210 1800 3000 600 3.24
PR3-14 14.3 210 1800 3000 500 3.3
PR3-17 16.5 210 1800 3000 500 3.41
PR3-19 19.2 210 1800 3000 500 3.53
PR3-23 23 210 1800 3000 500 3.73
PR3-25 25 175 210 1800 2800 500 3.78
PR3-28 28 175 210 1800 0 500 3.89
PR3-30 30 175 210 1800 0 500 3.99
PR3-33 33 140 175 1200 0 500 4.14
PR3-35 35 125 140 1200 0 500 4.25
