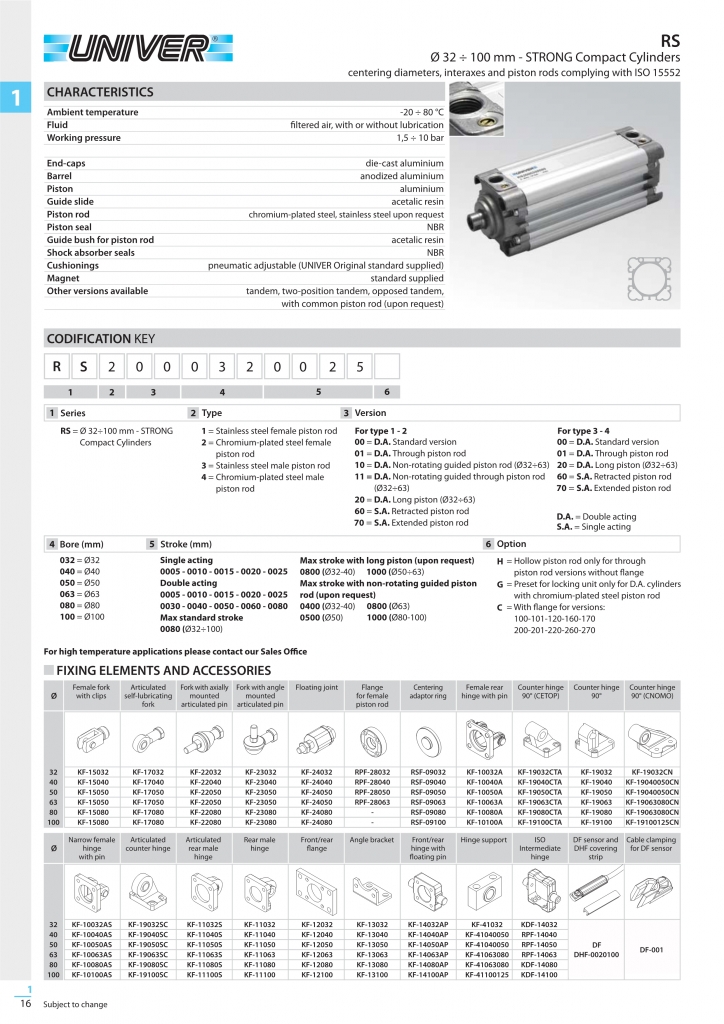

STRONG Compact Cylinders Ø 32-63 mm

A new series of compact cylinders for long strokes and heavy-duty applications standard supplied with oversized guides and rods, the first one with adjustable pneumatic cushioning without variations in size. The inter-axes, centering diameters and rods are in accordance with ISO 6431 and VDMA 24562 specifications.

Working pressure 1,5÷10 bar
Ambient temperature -20 ÷ 80 °C
Fluid  filtered air, lubricated or non lubricated
Barrel  aluminium extrusion
End-caps aluminium die-cast
Piston rod chromium-plated as standard
c stainless steel AISI 303 (upon request)
Piston aluminium
Seals piston seal in nitrile rubber
c piston rod seal in polyurethane
Magnetic version standard supplied (Magnetic switch DF-… series)
