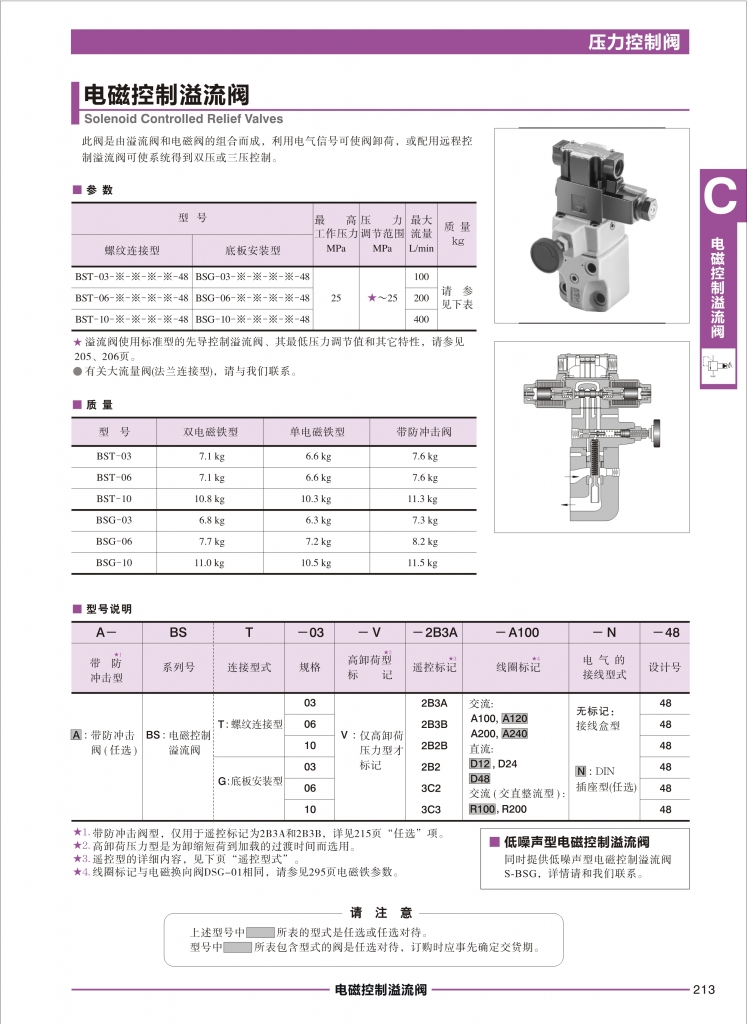

本电磁溢流阀由溢流阀和电磁换向阀组成。电磁换向阀直接安装在溢流阀上,并与溢流阀遥控口连通,系统压力可以由电磁线圈的电力信号遥控,令连接遥控溢流阀可实现两级或三级的压力控制。
型 号
|
最高使用压力
MPa |
压力调整范围
MPa |
最大流量
L/min |
质 量
kg |
||
管式连接
|
板式连接
|
BT型
|
BG型
|
|||
BST-03-※-※-※-48
|
BSG-03-※-※-※-48
|
25.0
|
注) ※-25.0 |
100
|
7.4
|
7.1
|
BST-06-※-※-※-48
|
BSG-06-※-※-※-48
|
200
|
7.4
|
8.0
|
||
BST-10-※-※-※-48
|
BSG-10-※-※-※-48
|
400
|
11.1
|
11.3
|
A-BSG-03-2B3A , A-BSG-03-2B3B , A-BSG-03-V-2B3A , A-BSG-03-V-2B3B , A-BSG-06-2B3A , A-BSG-06-2B3B , A-BSG-06-V-2B3A , A-BSG-06-V-2B3B , A-BSG-10-2B3A , A-BSG-10-2B3B , A-BSG-10-V-2B3A , A-BSG-10-V-2B3B , A-BST-03-2B3A , A-BST-03-2B3B , A-BST-03-V-2B3A , A-BST-03-V-2B3B , A-BST-06-2B3A , A-BST-06-2B3B , A-BST-06-V-2B3A , A-BST-06-V-2B3B , A-BST-10-2B3A , A-BST-10-2B3B , A-BST-10-V-2B3A , A-BST-10-V-2B3B , BSG-03-2B2 , BSG-03-2B2B , BSG-03-2B3A , BSG-03-2B3B , BSG-03-3C2 , BSG-03-3C3 , BSG-03-V-2B2 , BSG-03-V-2B2B , BSG-03-V-2B3A , BSG-03-V-2B3B , BSG-03-V-3C2 , BSG-03-V-3C3 , BSG-06-2B2 , BSG-06-2B2B , BSG-06-2B3A , BSG-06-2B3B , BSG-06-3C2 , BSG-06-3C3 , BSG-06-V-2B2 , BSG-06-V-2B2B , BSG-06-V-2B3A , BSG-06-V-2B3B , BSG-06-V-3C2 , BSG-06-V-3C3 , BSG-10-2B2 , BSG-10-2B2B , BSG-10-2B3A , BSG-10-2B3B , BSG-10-3C2 , BSG-10-3C3 , BSG-10-V-2B2 , BSG-10-V-2B2B , BSG-10-V-2B3A , BSG-10-V-2B3B , BSG-10-V-3C2 , BSG-10-V-3C3 , BST-03-2B2 , BST-03-2B2B , BST-03-2B3A , BST-03-2B3B , BST-03-3C2 , BST-03-3C3 , BST-03-V-2B2 , BST-03-V-2B2B , BST-03-V-2B3A , BST-03-V-2B3B , BST-03-V-3C2 , BST-03-V-3C3 , BST-06-2B2 , BST-06-2B2B , BST-06-2B3A , BST-06-2B3B , BST-06-3C2 , BST-06-3C3 , BST-06-V-2B2 , BST-06-V-2B2B , BST-06-V-2B3A , BST-06-V-2B3B , BST-06-V-3C2 , BST-06-V-3C3 , BST-10-2B2 , BST-10-2B2B , BST-10-2B3A , BST-10-2B3B , BST-10-3C2 , BST-10-3C3 , BST-10-V-2B2 , BST-10-V-2B2B , BST-10-V-2B3A , BST-10-V-2B3B , BST-10-V-3C2 , BST-10-V-3C3 ,
